The body of Pattern Building is the architectural volume of the building, made up of room modules complete with internal finishes. The body is designed for a 3×3m grid and consists of modules of different sizes denoted as M3, M6 and M9.

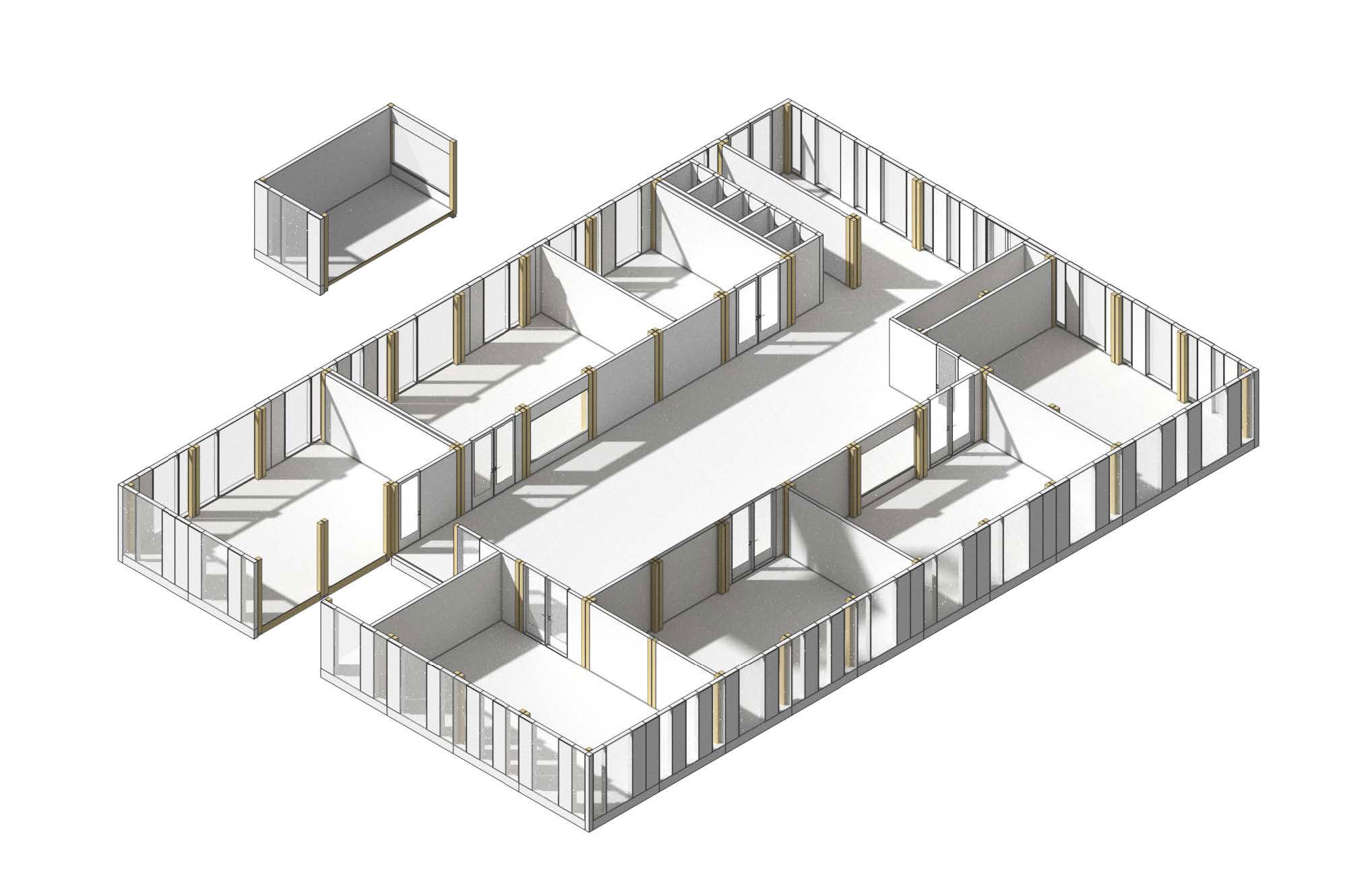

The body of the building is covered with facade and roof elements, here referred to as the skin.

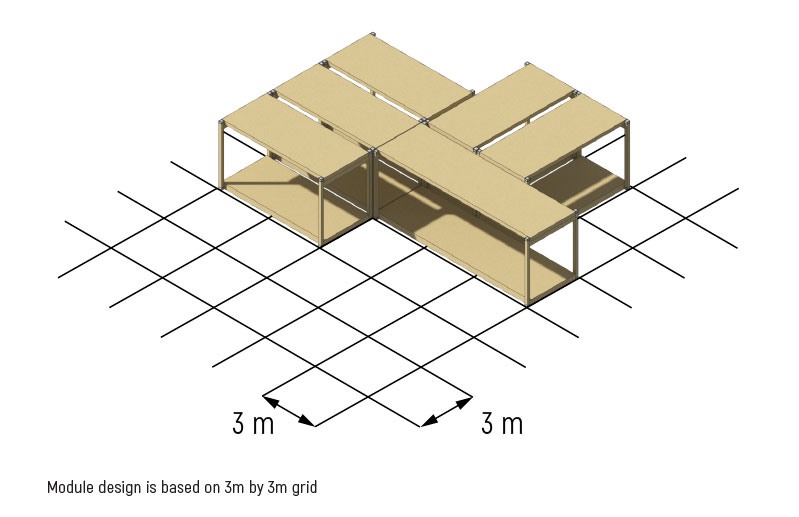

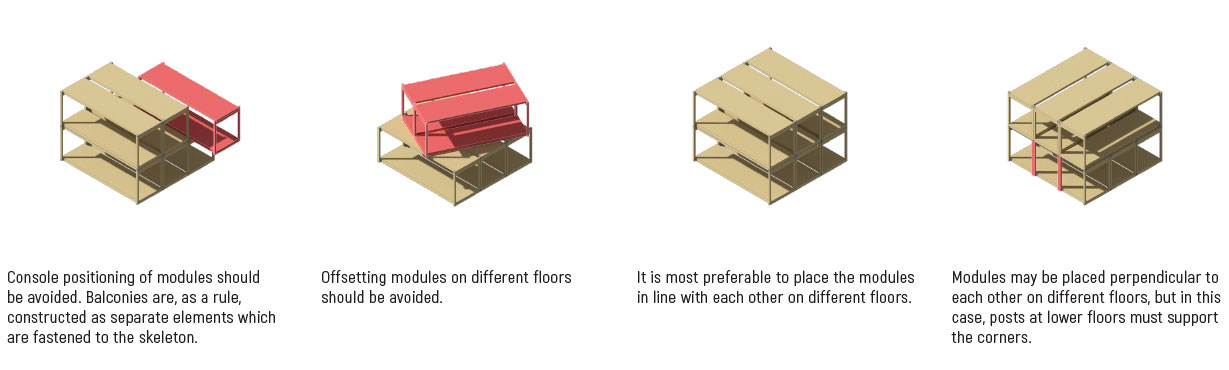

Since the actual size of the modules is unyieldingly accurate in terms of designing volumes, a planar grid with dimensions of 3 m by 3 m should be used. When placing modules in the building's skeleton, the general rule is that all modules follow the layout grid.

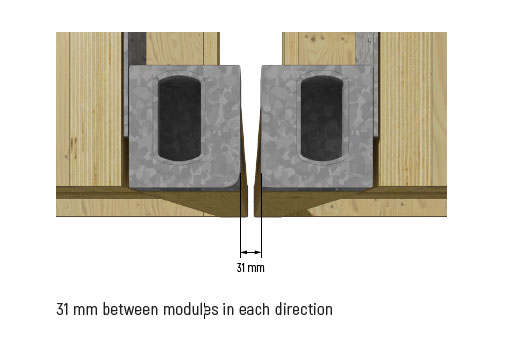

All modules have 31 mm space in every direction to fit fastenings and insulation materials.
